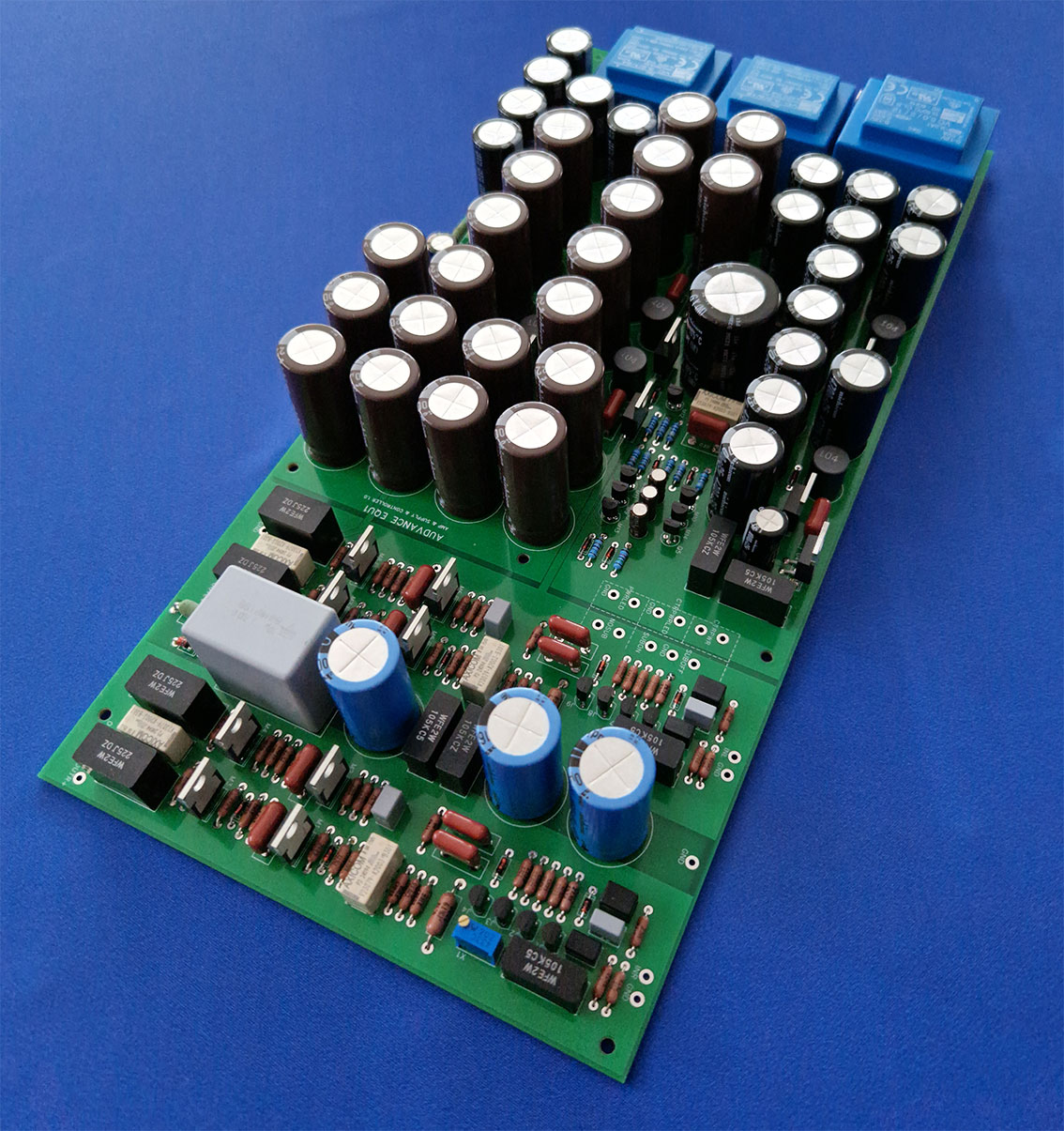

Audvance has designed new boards for your classic Revox B77 and PR99. These boards use modern high quality components and partly new circuits. The original seventies designs use inferior quality capacitors, resistors and integrated circuits. Although the original Revox boards are well designed and can sound quite good, many improvements can be made. Revox boards had to be swapped to change equalization between IEC and NAB during recording or playback. Basically Revox had three different boards for playback an recording. The Audvance boards offer all three versions on one board and switchable NAB/IEC equalization! You also get higher sound quality, extended bass and a lower noise floor.
Click on the link of your machine below and find out what upgrades are available.
|Revox B77/B77MKII 2-track
||Revox B77/B77MKII High Speed
||Revox B77/B77MKII 4-track
|Revox B77/B77MKII with Dolby

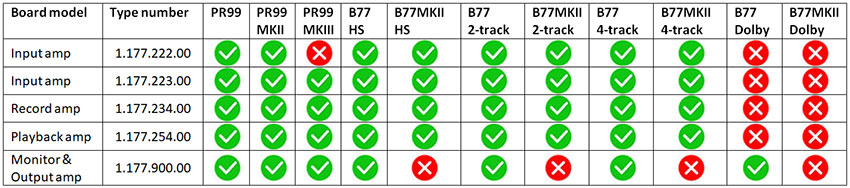

All Audvance boards fit most B77/PR99 machines as you can see from the table below. This is why the boards will hold their value very well.
⚫ Dual headphone power amplifier modules HPA-1

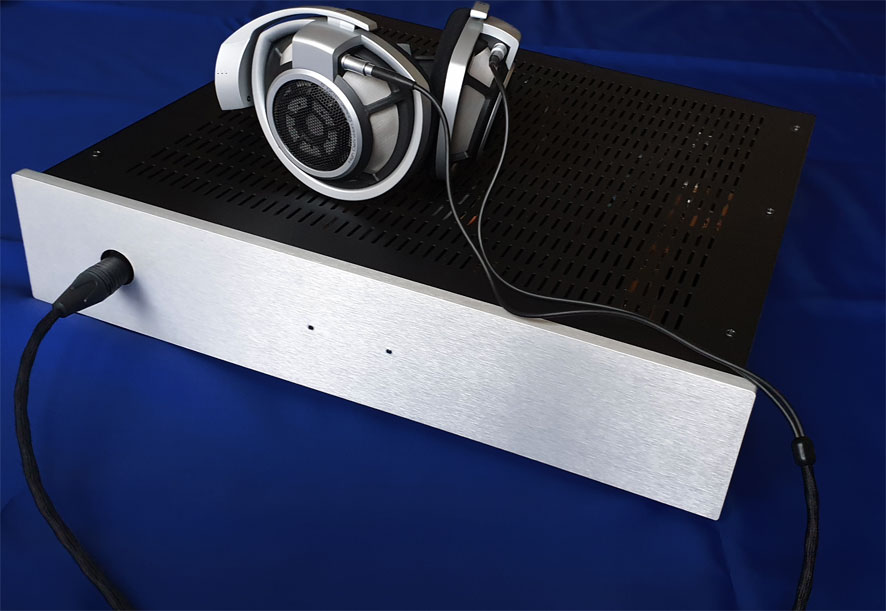

These dual mono high-end headphone power amplifier modules are designed to drive headphones in balanced mode. Balanced mode delivers the highest fidelity possible. It is based on the PA-20 power amplifier and uses similar high speed, balanced, single ended MOSFET topology in Class A+ mode. There is no overall feedback applied with just a DC servo, the biasing is fully automatic and it will drive any headphone with ease. This amplifier can compete with any other headphone amplifier no matter its cost. The sound is simply breathtaking. Excellent stereo imaging with lots of speed and definition and rich saturated musical colors. The modules are mono amplifiers so you buy them in pairs. Each module has a single balanced input and a balanced output. Instructions for the built can be found here.
Many high quality headphones operate or can be modified to operate in balanced mode. The headphone cable has to carry four wires all the way to the plug to make this simple modification possible. My own Sennheiser HD800 is modified that way. I cut off the standard plug and soldered on a XLR4 plug. If the cord is detachable like on many you can also simply replace the cord. Many companies offer headphone cables for this purpose.
Specifications of the HPA-1:
• Power output (RMS at 1% THD): 700mW (8 Ω), 1W (16 Ω), 1.7W (32 Ω), 900mW (300 Ω), 450mW (600 Ω) • Input impedance: 15 KΩ (to ground) • Output impedance: <1.5 Ω • Gain: 10dB • Frequency response: 10Hz-600kHz (-3dB) • Power consumption per channel: 32W (25VAC power transformer) • Dimensions (each module) lxbxh: 275x90x66 mm
Price for a stereo pair: € 349Add to cart
All things you need to build your stereo headphone power amplifier are:
• One pair of Audvance headphone modules • A mains transformer • Two XLR input connectors • One XLR-4 output connector, or dual XLR3 output connectors • Mains connector with fuse holder • Power switch • Cabling • A cabinet
For your convenience I offer these parts here as well as you can see below.
⚫ Mains transformer and mains entry with twin fuses and power switch
Included in this package is a toroidal 2x25V/160VA mains transformer and a Delta 10C2 mains entry. This high safety entry includes twin fuses and a dual pole switch. More info on the switch can be found here. The transformer has a diameter of 105mm and a height of 47mm. It has dual primary windings to match both 115 and 230V mains voltages. Two fuses are included.
Price: € 69Add to cart
⚫ Dual mains transformers and mains entry with twin fuses and power switch
This if you prefer a dual mono approach for the power supply as well. Included in this package are two toroidal 2x25V/80VA mains transformers and one Delta 10C2 mains entry. This high safety entry includes twin fuses and a dual pole switch. More info on the switch can be found here. The transformer has a diameter of 105mm and a height of 47mm. It has dual primary windings to match both 115 and 230V mains voltages. Two fuses are included.
Price: € 99Add to cart
⚫ Two XLR3 input connectors and one XLR4 outout connector
All that is needed to connect to inputs and to a headphone when you want to use a single XLR4 connector on your headphone. Connectors are all high quality Neutrik ones with gold plated contacts. They need to be soldered to the wires. Inputs are type NC3FP-B-1 and output is type NC4FP-B-1.
Price: € 25Add to cart
⚫ Two XLR3 input connectors and two XLR3 outout connectors
All that is needed to connect to inputs and to a headphone when you want to use a dual XLR3 connector on your headphone. Connectors are all high quality Neutrik ones with gold plated contacts. They need to be soldered to the wires. Inputs and outputs are all type NC3FP-B-1.
Price: € 25Add to cart
⚫ Aluminium cabinet
Nice looking cabinet from MODU Italy. Front panel is 10mm thick. Two amplifier modules fit exactly with the transformer(s) sitting in the middle. The cabinet is type 1NSL02280B. I sell it including a better ventilated top panel type 3SLA0103280ASOLE.
Price: € 149Add to cart
